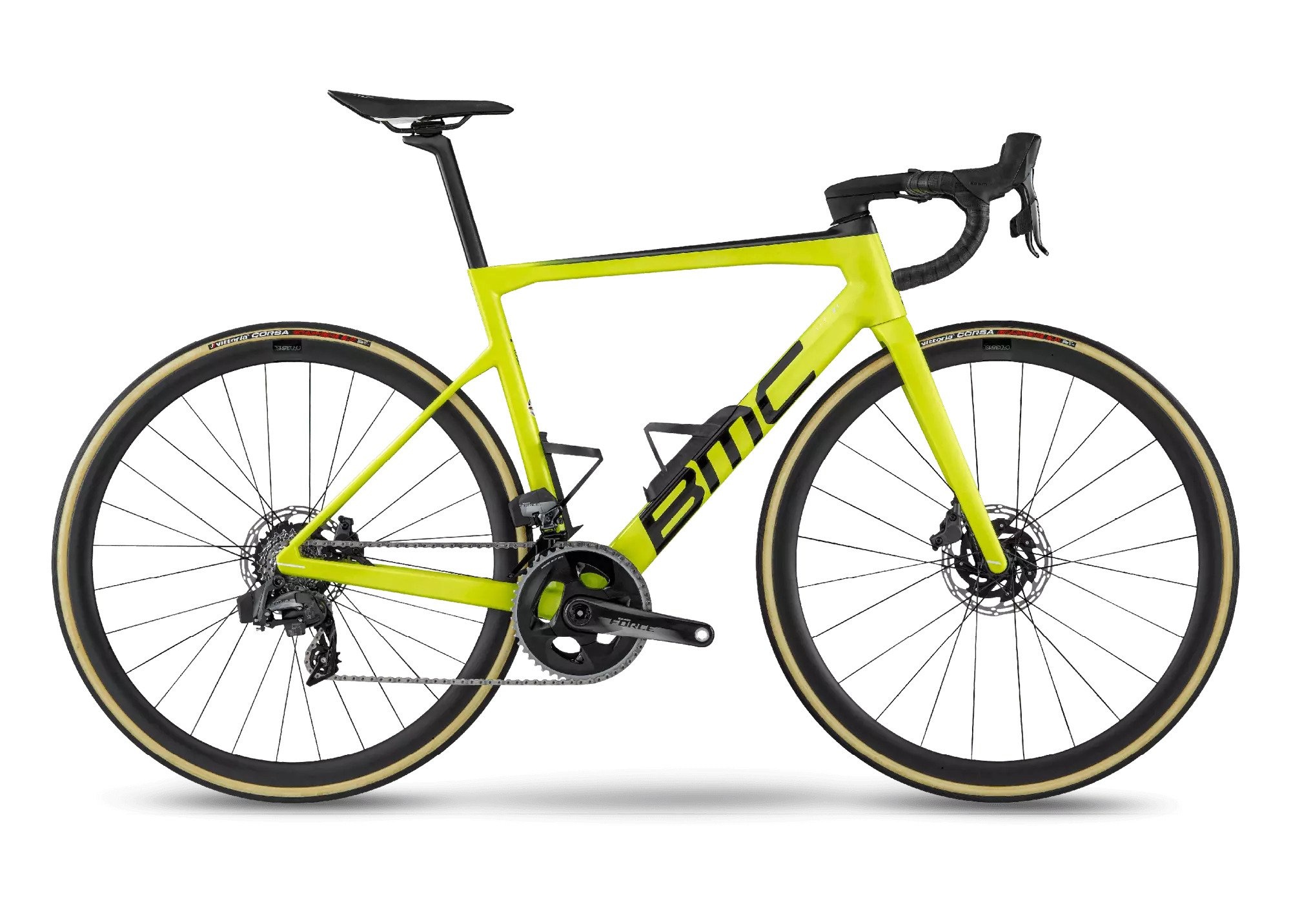

BMC Switzerland BMC Teammachine SLR01 FOUR 54cm Yellow/Blk/Wht
Home

BMC Teammachine SLR01 FOUR 54cm Yellow/Blk/Wht

$7,999.99
BMC Switzerland
Out of stock
The original Teammachine SLR01 created the blueprint for the modern road bike. After more than a decade of obsessive innovation and development, today’s world-beating Teammachine SLR01 still leads where others follow.
Out of stock
Size guide
  • Teammachine SLR 01 premium ACE carbon D-shape seatpost

Teammachine SLR01 features Integrated Cockpit System (ICS) technology to deliver a completely integrated cockpit and cable routing. ICS technology requires a specific fork design, easily identified by the rectangular steerer.*



Technical Details

  • Aerocore: aerodynamic featherweight carbon bottle cage system
  • Downtube bottle cage
  • Seat tube bottle cage
  • Stealth cable management
  • Integrated seat clamp
  • Easy access Di2 junction box integrated in downtube
  • Stealth droputs with dedicated stealth thru-axles
  • ASTM level 1

Only use stealth thru-axles provided with Teammachine SLR01 and Teammachine SLR bikes and modules. Stealth dropouts and thru-axles are compatible with most direct-drive indoor trainers.*



Sizes

47, 51, 54, 56, 58, 61



Frame Weight**
820 g

Fork Weight**
345 g

Seatpost Weight**
185 g



Cockpit

ICS Carbon Cockpit - Superlight Integrated Cockpit System

  • One-piece design-optimized for low weight and stiffness
  • Handlebar reach/drop: 67/127 mm
  • Stem angle: -15˚
  • Handlebar reach/drop and stem angle are the same for every ICS carbon cockpit
  • Bar width & stem length: 400x90 mm, 420x100 mm, 420x110 mm, 420x120 mm
  • 305 g (complete cockpit)

ICS2 with RAB02 Bar

  • Premium, 2nd generation Integrated Cockpit System stem with internal cable routing and easy fit adjustment
  • Handlebar reach/drop: 70/125 mm (RAB02)
  • Stem angle: -15˚ (ICS2)
  • 185 g (stem)

Teammachine SLR01 is compatible with any ICS cockpit configuration using the dedicated topcones (ICS Carbon, ICS Aero, ICS2, ICS01, ICS01 0 Degrees).*



Compatibility

Frame, Fork and Seatpost

  • ICS specific fork with tapered steerer, flat mount
  • Compatible with electronic groupsets only
  • PF86 bottom bracket
  • D-Shape seatpost
  • Braze-on front derailleur mount
  • Replaceable ultra light sandwich rear derailleur hanger

Brakes

  • Front brake: flat mount, 160 mm rotors only
  • Rear brake: flat mount, 140/160 mm rotors

Wheels and Axles

  • Designed for 25 mm, maximum tire clearance 30 mm (actual measured width)
  • Front stealth thru-axle: 12x100 mm (diameter/frame spacing)
  • Rear stealth thru-axle: 12x142 mm (diameter/frame spacing)



*Notes about proprietary technology

**Weight for the lightest finish, including complete hardware with size 54 frames
